TECHNICAL DETAILS

TORQUE 99 Nm @ 7500 rpm
COOLING Liquid cooled
POWER IN KW 89 kW @ 9250 rpm
STARTERElectric starter
TANK CAPACITY (APP.) 14 L
ABS Supermoto ABS
Front Suspension WP APEX 43
Rear Suspension WP APEX - Monoshock
Kerb Weight 180KG
COLOURSOrange

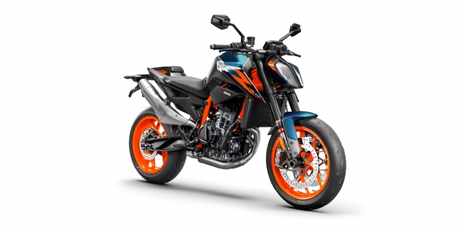

KTM 890 DUKE R

KTM Pro-XP is the ultimate riding program for KTM owners. Whether you're carving through city streets on your DUKE, conquering the wildest terrains on your ADVENTURE, shredding off-road trails on your ENDURO, or pushing your limits in Supercross, KTM Pro-XP delivers exclusive, adrenaline-fueled, premium curated experiences for every rider from amateur to professional. It’s the ride that’s as diverse, thrilling, and unstoppable as you are – making KTM the only brand to offer such a complete, high-octane journey across Off-Road, Street, and Track.

SPECIFICATIONS

Chassis

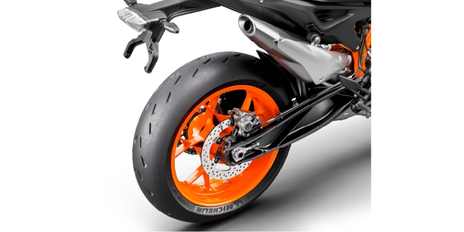

TIRES

Getting the KTM 890 DUKE R to really stick to the tarmac is a set of MICHELIN Powercup II hypersport tires. These are state-of-the-art in terms of tire development, offering fantastic grip on track or on the street in all conditions.

Chassis

TURN IT UP!

WHEELS

The KTM 890 DUKE R comes with extremely lightweight, light-alloy wheels finished in signature 'R' orange as standard. This not only drops the overall weight of the bike, but also minimizes the unsprung masses and aids in faster turn-in and reduced rolling resistance.

Chassis

REAR SHOCK

A fully adjustable WP APEX shock takes command at the rear of the bike, with high and low speed compression settings, as well as rebound adjustment. A hydraulically adjustable preload adjuster allows for quick and easy tuning on the fly.

Chassis

TRIPLE CLAMPS

Triple clamp stiffness has been tuned to match the flex of the fork, contributing to sporty handling and excellent feedback. An aluminum steering stem has been used instead of steel, as on the KTM 790 DUKE, to reduce the overall weight.

Chassis

FRONT FORK

The KTM 890 DUKE R features adjustable linear spring WP APEX front forks with split function damping, compression and rebound settings. This allows riders to perfectly sharpen their preferred setup for track or the street.

Chassis

MORE GO AND MORE WHOA!

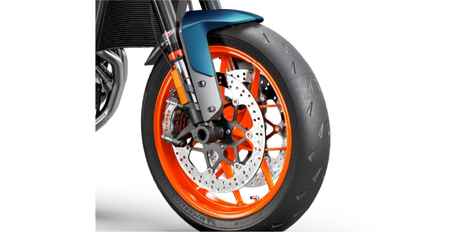

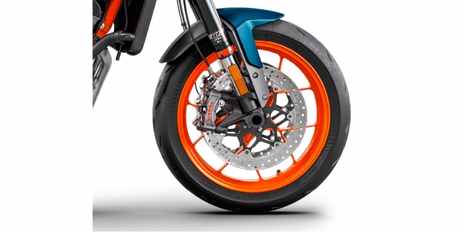

BRAKES

Developed with high performance street and track riding in mind, the KTM 890 DUKE R is fitted with the best brakes in the business. Brembo Stylema monoblock calipers and lighter 320 mm floating disks upfront ensure sharp and precise brake feel, while slowing down from speed. These are further enhanced by a Brembo MCS master cylinder, which allows the rider to adjust the lever ratio and brake feel. Overall, 1.2 kg of unsprung mass has been saved compared to the KTM 790 DUKE.

Chassis

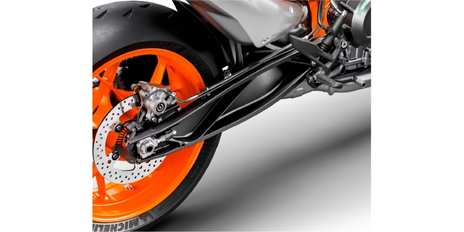

SWINGARM

The die-cast, open-lattice swingarm is optimized for stiffness but features a steeper angle for increased stability as well as excellent flex characteristics. This makes the KTM 890 DUKE R every bit as sharp as you'd expect it to be.

Chassis

PERFECT SETUP

SUSPENSION

Adapted to suit the added power of the KTM 890 DUKE R but still retaining the signature DUKE agility, the adjustable suspension on the KTM 890 DUKE R has been fettled to be sportier with improved high-speed stability, while retaining real-world street riding comfort.

Chassis

SUBFRAME

The subframe is cast aluminum and houses the airbox. No plastic covers, no additional brackets - everything is cast into two connected pieces to reduce complexity and weight. The triangular shapes in the subframe allow for a stronger, stiffer construction.

Chassis

SHARPER PRECISION

FRAME

Just like the KTM 790 DUKE, the KTM 890 DUKE R's handling characteristics are thanks to the dynamic, loadbearing design of the tubular chassis, which allows it to carve through twisty tracks and mountain passes with extreme responsiveness. Just like every other KTM R, the frame is painted orange to highlight its sporty credentials.

Engine Exhaust

PARALLEL PERFORMANCE

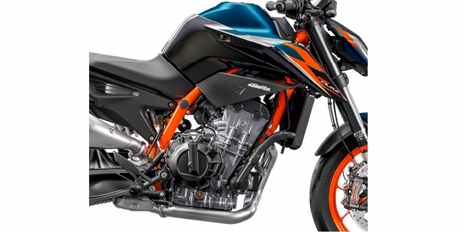

ENGINE

Developed from the same parallel twin that powers the KTM 790 DUKE, the KTM 890 DUKE R engine has been worked into a fire- breathing, high-performance midweight titan. With its increased bore and stroke, higher compression and higher max. RPM limit, the KTM 890 DUKE R churns out an impressive 121 HP and 99 Nm.

Engine Exhaust

ENGINE CASE

The KTM 890 DUKE R features horizontally split, high pressure cast aluminum crankcases, allowing for reduced wall thickness and weight. A heavier crankshaft and flywheel setup also helps to pump up torque.

Engine Exhaust

CYLINDER HEADS

A new cylinder head has been developed specifically for the KTM 890 DUKE R to accommodate a set of larger 37 mm intake and 30 mm exhaust valves, while the camshafts feature increased lift and a more aggressive profile. A new balancer shaft has also been added to match the increased RPM and increased rotating mass.

Engine Exhaust

RIDE BY WIRE

Ride-by-wire processes throttle inputs with the help of electronic sensors and activates the throttle valves, electronically translating the throttle commands of the rider into the best throttle valve positions for the current riding situation. All this means more control when attacking the twisties.

Engine Exhaust

PASC CLUTCH

The slipper clutch allows riders to enter corners confidently without locking up the rear wheel under hard deceleration or when downshifting, while remaining feather-light on the clutch finger.

Engine Exhaust

CRANKCASE

The KTM 890 DUKE R features horizontally split crankcases, made from high-pressure cast aluminum, allowing for thinner wall thickness and added weight saving. The crankcases on the KTM 890 DUKE R have also been re-engineered to allow for the longer stroke over the KTM 790 DUKE.

Engine Exhaust

FULL VOLUME

EXHAUST

A stainless-steel thing of beauty. The middle damper centralizes mass and allows for a relatively small muffler that plays a dramatic soundtrack. Hundreds of test bench runs and complex simulations ensured that this exhaust system contributes decisively to the tractable torque curve and excellent emission standards.

Engine Exhaust

PISTONS

Two forged box pistons featuring three piston rings and a bronze conrod bearing work in tandem to power the beating heart of the KTM 890 DUKE R. Thanks to the box construction, piston weight is reduced by 10 g compared to the pistons in the KTM 790 DUKE engine, despite the larger bore.

Engine Exhaust

INJECTORS

Developed specifically for KTM by DELL'ORTO, new sensors in each throttle body measure the manifold pressure and adjust the mixture accordingly per cylinder, improving throttle response and smoothing out throttle action for more precise throttle inputs.

Software Electronics

LIGHT THE WAY

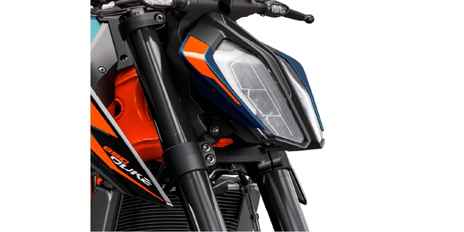

LED HEADLIGHT

The LED headlights on the KTM 890 DUKE R combine optimal near- field illumination with maximum light output. Daytime running lights ensure that other road users see you coming, which you undoubtedly will be doing at speed.

Software Electronics

INFO CENTRE

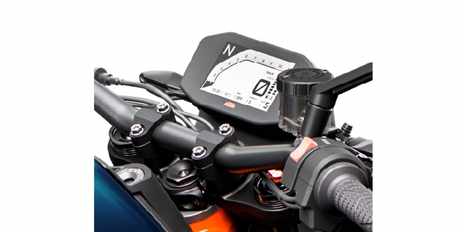

TFT DISPLAY

A multicolor combination of relevant information, presented in an uncluttered way. As you rev the engine, the display bars change color, either spurring you on or warning you that the engine's still cold. The display also automatically adapts its illumination to the ambient light. On the KTM 890 DUKE R, anti-wheelie and ABS modes are shown in the display.

Software Electronics

FOR ANY OCCASION

RIDER AIDS

For KTM, electronic rider aids are a way to provide more control, performance and fun. Riders can choose from four ride modes, namely: Sport for more aggressive riding, Street for comfortable urban riding, Rain for when things get a little slippery, and the ultimate attack mode - Track.

Software Electronics

KTM 390 Duke gets new features for Sharper Handling

RIDE MODES

For KTM, electronic rider aids are a way to provide more control, performance and fun. Riders can choose from four ride modes - Rain mode
- Street mode
- Sport mode
- Track mode

Software Electronics

KTM 390 Duke gets new features for Sharper Handling

MTC

Motorcycle Traction Control (MTC) is a mouthful, but it's an important part of the KTM 890 DUKE R. MTC is a lean-angle sensitive traction control system, which reduces engine output with an extremely smooth, barely noticeable intervention to limit wheelslip. Depending on the selected ride mode, MTC also allows for several levels of traction control at the rear wheel.

Software Electronics

QUICKSHIFTER

The KTM 890 DUKE R allows for slick, clutchless up and downshifts thanks to the optional Quickshifter+ system. It reads and responds to your riding under any load to ensure shift action is as fast as you are. When downshifting, the system matches the engine speed to the speed of the lower gear.

Software Electronics

TRACK MODE

An optional "Track mode", as the name suggests, offers unlimited thrills and READY TO RACE characteristics. It features a launch control function for quick getaways, variable slip adjustment, increased throttle response and the ability to pull epic wheelies by disengaging anti-wheelie.

Software Electronics

SUPERMOTO ABS

Supermoto ABS allows enthusiastic and experienced riders to lock up the rear wheel - a prerequisite for committed Supermoto riding and deliberately executed slides. This means ABS is deactivated on the rear wheel, while maintaining ABS function on the front.

Bodywork Graphics

RAZOR SHARP LINES

BODYWORK

The KTM 890 DUKE R casts an intimidating shadow thanks to its menacing profile and ultrasharp lines. In the metal, however, it's obvious that this DUKE means business. Compact proportions, loud graphics and a bright orange frame are all unapologetically KTM R.

Bodywork Graphics

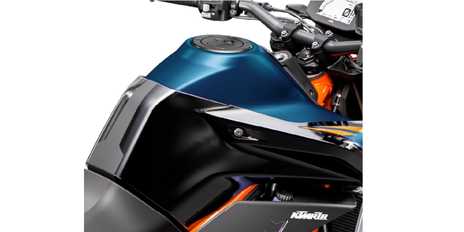

TANK

Just like the KTM 790 DUKE, the KTM 890 DUKE R gets a 14 L steel tank, perfectly profiled to accommodate aggressive and relaxed riding styles.

Bodywork Graphics

DESIGNED WITH INTENT

GRAPHICS

A high-quality application process has been used to ensure the signature 'R' graphics on the KTM 890 DUKE R demand respect. Contrasting orange on white sets it apart from anything else in the mid-weight title fight.

Ergonomics & Comfort

WHITE-KNUCKLED GRIP

HANDLEBAR

The tapered aluminum handlebars are positioned flatter, lower and further forward to increase feeling from the front tire and give the KTM 890 DUKE R a racier riding position. Riders can also tailor their preferred reach with three rotational adjustments and 4 positions of fine-tuning on the triple clamp.

Ergonomics & Comfort

SIT TIGHT

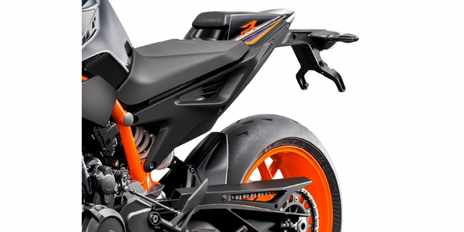

SEATS

At 840 mm, the KTM 890 DUKE R sits higher than the KTM 790 DUKE to give it a meaner stance, but also more lean angle. The pillion seat comes as standard with the DUKE's signature cover to give the KTM 890 DUKE R a sharper, racier look.

Ergonomics & Comfort

FIRM FOOTHOLD

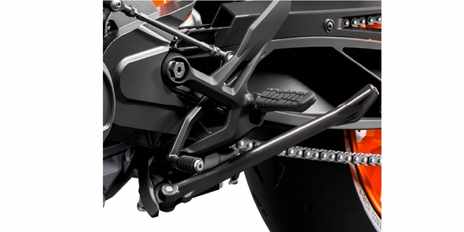

FOOTPEGS

The KTM 890 DUKE R features completely new foot pegs, which are positioned higher and further back for a sportier riding position and greater lean angles. Reverse race shifting is also possible without any additional parts.
